Check transit service availability by date

Source: R/check_transit_availability.R
check_transit_availability.Rd

This function checks the number and proportion of public transport services from the GTFS feeds in a r5r_network that are active on specified dates. This is useful to verify that the selected departure dates for routing analysis are valid and have adequate service levels. When routing with public transport, it is crucial to use a departure date where services are operational, as indicated in the GTFS calendar.txt file.

Usage

check_transit_availability(
  r5r_network,
  r5r_core = deprecated(),
  dates = NULL,
  start_date = NULL,
  end_date = NULL
)

Arguments

r5r_network

A routable transport network created with build_network().

r5r_core

The r5r_core argument is deprecated as of r5r v2.3.0. Please use the r5r_network argument instead.

dates

A vector of specific dates to be checked. Can be character strings in #' "YYYY-MM-DD" format, or objects of class Date. This argument cannot be used with start_date or end_date.

start_date

The start date for a continuous date range. Must be a single character string in "YYYY-MM-DD" format or a Date object. Must be used with end_date.

end_date

The end date for a continuous date range. Must be a single character string in "YYYY-MM-DD" format or a Date object. Must be used with start_date.

Value

A data.table with four columns: date, total_services, active_services, and pct_active (the proportion of active services).

Details

You can specify the dates to check in two ways:

  • Using the dates argument to provide a vector of specific dates.

  • Using the start_date and end_date arguments to provide a continuous date range.

You must use one of these two methods, but not both in the same function call.

Examples

library(r5r)
data_path <- system.file("extdata/poa", package = "r5r")
r5r_network <- build_network(data_path)
#> ℹ Using cached network from
#>   /home/runner/work/_temp/Library/r5r/extdata/poa/network.dat.

# Example 1: Check a vector of specific dates
# Let's check a regular weekday and a Sunday, where service may differ.
dates_to_check <- c("2019-05-13", "2019-05-19")
availability1 <- check_transit_availability(r5r_network, dates = dates_to_check)
availability1
#>          date total_services active_services  pct_active
#>        <Date>          <int>           <int>       <num>
#> 1: 2019-05-13            118             116 0.983050847
#> 2: 2019-05-19            118               1 0.008474576

# Example 2: Check a continuous date range using start_date and end_date
availability2 <- check_transit_availability(
  r5r_network,
  start_date = "2019-01-01",
  end_date = "2019-12-31"
)
availability2[121:124,]
#>          date total_services active_services  pct_active
#>        <Date>          <int>           <int>       <num>
#> 1: 2019-05-01            118              62 0.525423729
#> 2: 2019-05-02            118             116 0.983050847
#> 3: 2019-05-03            118             116 0.983050847
#> 4: 2019-05-04            118               1 0.008474576

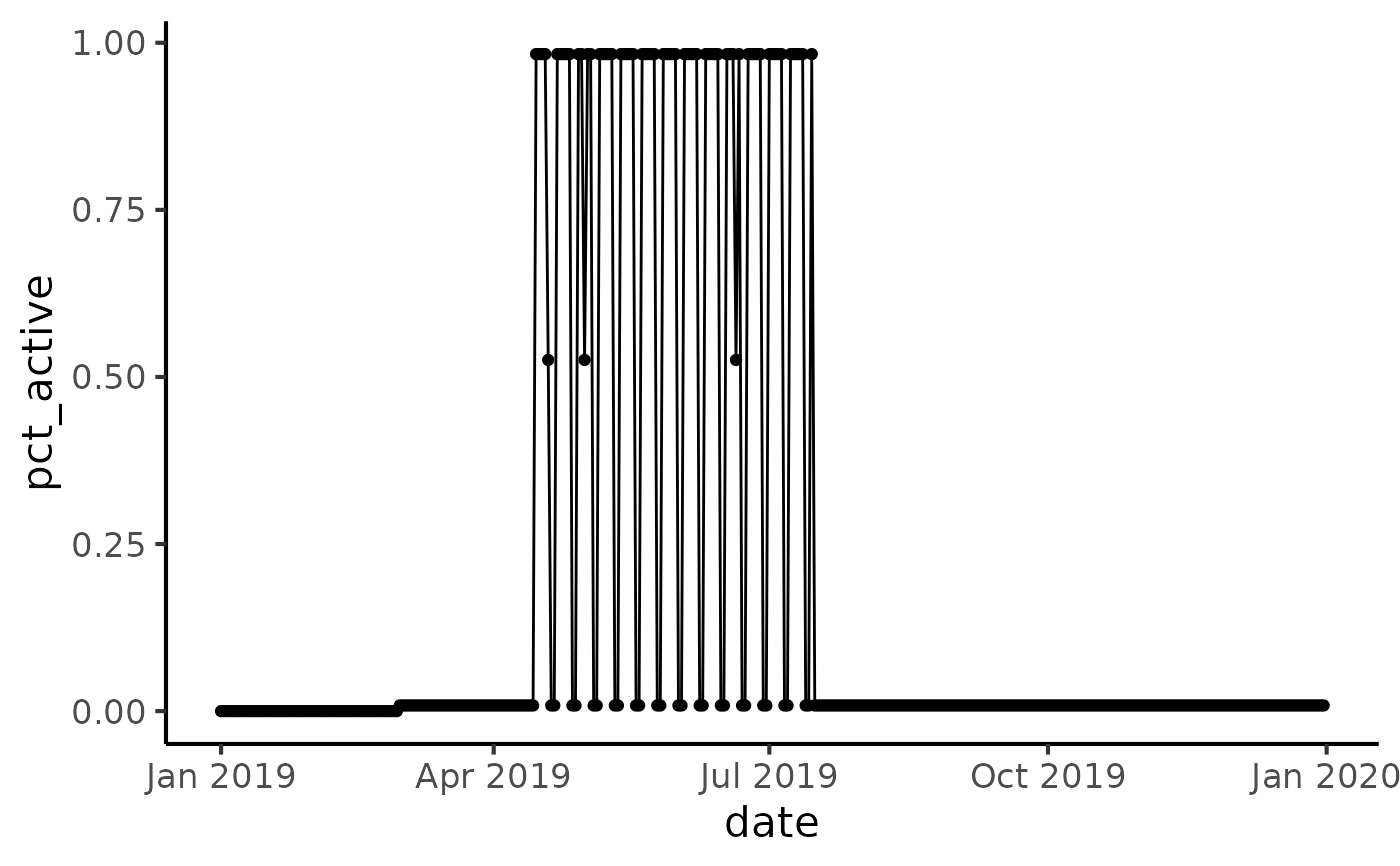

# plot availability over the year
library(ggplot2)
ggplot(availability2, aes(x = date, y = pct_active)) +
  geom_line() +
  geom_point() +
  theme_classic(base_size = 16)


stop_r5(r5r_network)
#> r5r_network has been successfully stopped.
